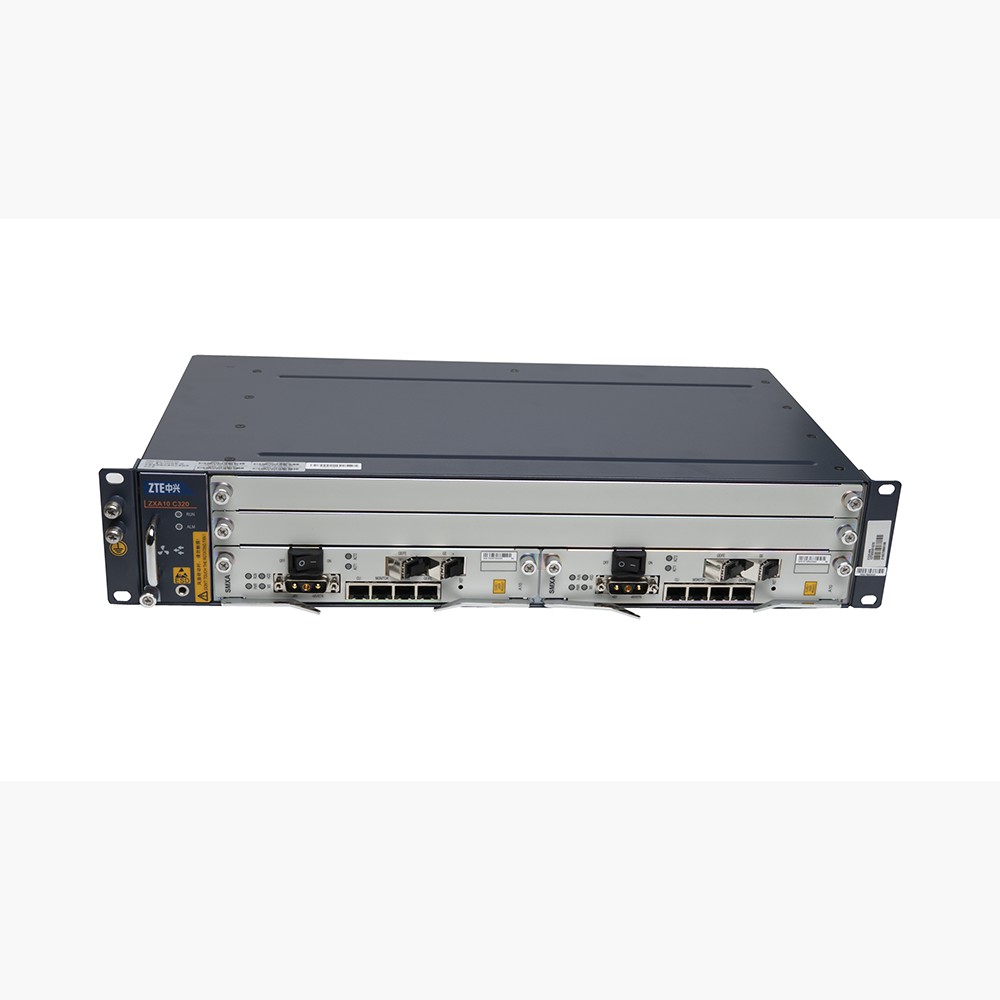

ZTE C320

Short Description:

ZTE C320 – compact OLT platform

The ZTE C320′s small footprint allows the platform to be placed in cabinets alongside other equipment, or in locations with limited space. The low-capacity OLT platform’s power consumption results in a 45% reduction in energy demand.

The C320 platform is suitable for long-distance applications where the OLT must be close to users and cannot be centrally operated. S+C VLAN, QoS, multicast, E-OAM, synchronization, and security features enable the C320 to create a stable and reliable network.

Specification

Platform capabilities

420 Gb/s

Speed of change

84 Gb/s

Number of places for service cards

2 (GPON / P2P / XG-PON1)

Number of places for combined control cards

Number of power supply card slots

Number of Uplink card slots

1 (10GE / GE / FE / E1 / T1)

Maximum number of GPON subscribers

4,096

Management interfaces

CLI, SSH, SNMP, telnet

Dimensions

2U (86.1 x 482.6 x 270 mm)

Power supply

48 V (DC), 230 V (AC)

Working conditions

Temperature: -25°C to 55°C Humidity: 5%-95%

Subdivision coefficient

Up to 1:128

Scope

20-60 km

Maximum cushioning

SFP B+ 28 dB SFP C+ 32 dB

Dynamic capacity allocation

NSR-DBA SR-DBA

Support

FEC AES128 SCB OLS

Multicast

IGMP Snooping/Proxy/SPR and MLD Snooping/Proxy 256 multicast VLAN, CAC, PRV, CDR

QoS

8 queues per port SP DWRR The DSPC CIR PIR EIR brand

Safeguards

L2-L4 ACL IP and MAC Source Guard DOS Protection Anti-spoof MAC/IP Protection DHCP Amphitheater Flooding 82

Other parameters

VLAN, SVLAN, QinQ, VLAN stacks, STP/RSTP/MSTP, DHCP server, DHCP relay, DHCP proxy, IPv4/IPv6 dual stack

GPON cards

1 x GTGO (8 x GPON Port)

Control, Uplink and Power Cards

2 x SMXA (1 x 10GE, 2 x GE uplink interface (2 x SFP, 1 x RJ45), 48V DC power input, switchable: 84Gb/s)

Send email to us

Product Detail

Product Tags

ZTE C320 – compact OLT platform

zte zxa10 c320, 1x gtgo 2x smxa, zxa10 c320 manual pon, fiber optic cables, fe rack, gigabit port, optical networks.
Platform extension cards

Kontrolne, Uplink i zasilania: 2 x SMXA (1 x 10GE, 2 x GE Uplink Interfejs (2 x SFP, 1 x RJ45), wejście zasilania 48 V DC, możliwość przełączania: 84 Gb/s)

GPON: 1 x GTGO (8 x GPON Port)
zte c320 olt, zte c320 snmp, without zte c320 manual epfc gcsa eigm gpon, ip address, gpon networks, sfp modules.
Compaction and energy efficiency
The ZTE C320′s small footprint allows the platform to be placed in cabinets alongside other equipment, or in locations with limited space. The low-capacity OLT platform’s power consumption results in a 45% reduction in energy demand.
zxa10 c320 product description, gigabit, gpon networks, optical fiber, optical network.
Cost reduction and management
The C320 platform is suitable for long-distance applications where the OLT must be close to users and cannot be centrally operated. S+C VLAN, QoS, multicast, E-OAM, synchronization, and security features enable the C320 to create a stable and reliable network.
Specification
Specification
Platform capabilities
420 Gb/s
Speed of change
84 Gb/s
Number of places for service cards
2 (GPON / P2P / XG-PON1)
Number of places for combined control cards
2
Number of power supply card slots
1
Number of Uplink card slots
1 (10GE / GE / FE / E1 / T1)
Maximum number of GPON subscribers
4,096
Management interfaces
CLI, SSH, SNMP, telnet
Dimensions
2U (86.1 x 482.6 x 270 mm)
Power supply
48 V (DC), 230 V (AC)
Working conditions
Temperature: -25°C to 55°C Humidity: 5%-95%
Subdivision coefficient
Up to 1:128
Scope
20-60 km
Maximum cushioning
SFP B+ 28 dB SFP C+ 32 dB
Dynamic capacity allocation
NSR-DBA SR-DBA
Support
FEC AES128 SCB OLS
Multicast
IGMP Snooping/Proxy/SPR and MLD Snooping/Proxy 256 multicast VLAN, CAC, PRV, CDR
QoS
8 queues per port SP DWRR The DSPC CIR PIR EIR brand
Safeguards
L2-L4 ACL IP and MAC Source Guard DOS Protection Anti-spoof MAC/IP Protection DHCP Amphitheater Flooding 82
Other parameters
VLAN, SVLAN, QinQ, VLAN stacks, STP/RSTP/MSTP, DHCP server, DHCP relay, DHCP proxy, IPv4/IPv6 dual stack
GPON cards
1 x GTGO (8 x GPON Port)
Control, Uplink and Power Cards
2 x SMXA (1 x 10GE, 2 x GE uplink interface (2 x SFP, 1 x RJ45), 48V DC power input, switchable: 84Gb/s)
