24 Channel HDMI HD Encoder NDS3244S

Short Description:

Product Overview

NDS3236S/NDS3244S Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 16/24 HDMI inputs with very 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

  • :
  • :
  • Product Detail

    Product Tags

    Key features

    • 16 or 24 HDMI inputs with SPTS and MPTS output (2 or 3 Encoder Modules share the same one NMS port and DATA port)
    • MPEG4 AVC/H.264 video encoding format
    • MPEG1 Layer II, LC-AAC,HE-AAC audio encoding format and AC3 Pass Throughand audio gain adjustment
    • IP output over UDP and RTP/RTSP protocol
    • Support QR code, LOGO, caption insertion
    • Support “Null PKT Filter” function
    • Control via web management, and easy updates via web

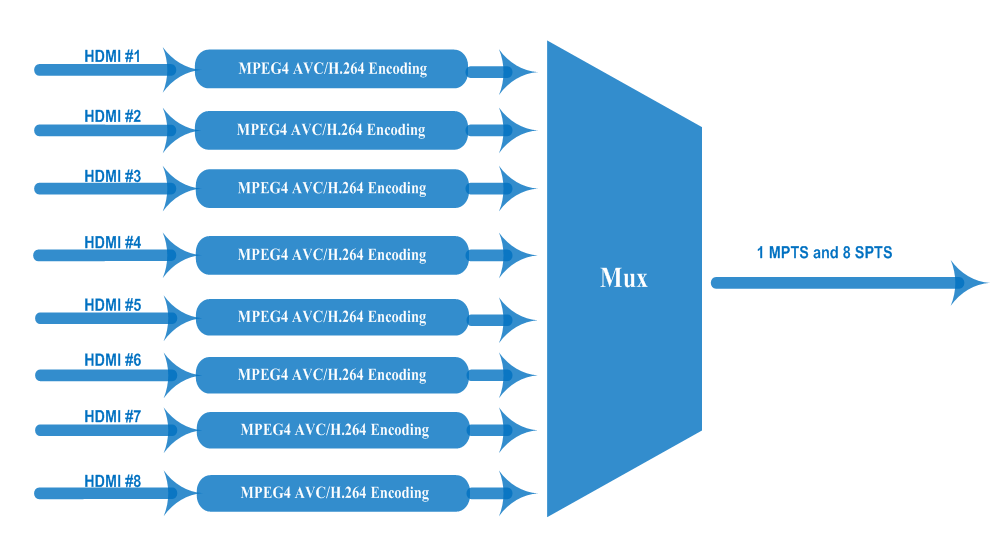

    Principle Chart (Each Encoder Module)

    24 Channel HDMI HD  Encoder NDS3244S Princple

    Technical specification

    Input 16 HDMI inputs (NDS3236S); 24 HDMI inputs (NDS3244S)
    Video Resolution input 1920×1080_60P, 1920×1080_60i,

    1920×1080_50P, 1920×1080_50i,

    1280×720_60P, 1280×720_50P,

    720 x 576_50i,720 x 480_60i

    Output 1920×1080_30P, 1920×1080_25P,

    1280×720_30P, 1280×720_25P,

    720 x 576_25P, 720 x 480_30P

    Encoding MPEG-4 AVC/H.264
    Bit-rate 1~20Mbps each channel
    Rate Control CBR/VBR
    GOP Structure IP…P (P Frame adjustment, without B Frame )
    Audio Encoding MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
    Sampling rate 48KHz
    Resolution 24-bit
    Audio Gain 0-255 Adjustable
    MPEG-1 Layer 2 Bit-rate 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
    LC-AAC Bit-rate 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
    HE-AAC Bit-rate 48/56/64/80/96/112/128 kbps
    Stream output IP output through DATA (GE) over UDP and RTP/RTSP protocol

    (8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder module)

    System function Network management (WEB)
    English language
    Ethernet software upgrade
    Miscellaneous Dimension(W×L×H) 440mm×324mm×44mm
    Environment 0~45℃(work)-20~80℃Storage
    Power requirements AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

    Order Guide




    16 HDMI inputs


    24 HDMI inputs
