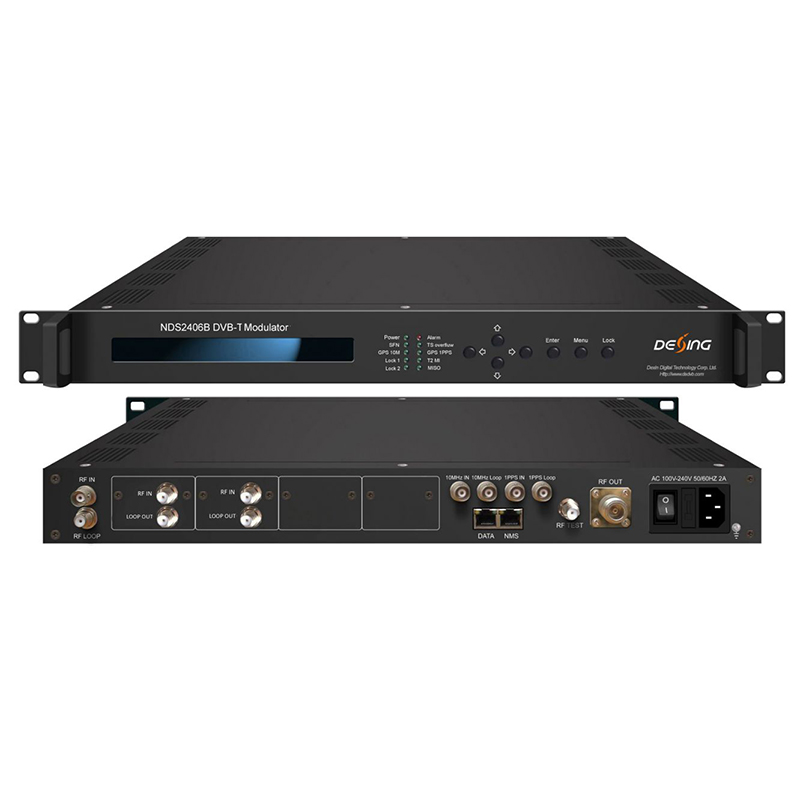

DVB-T2 modulator NDS2406B

Short Description:

 DVB-(T) modulator is DEXIN’s all-in-one device which integrates demodulation, trans-mux and modulation in one case to convert signals into DVB-(T) RF output and IP output over UDP. The device equipped with 2 DVB-S/S2 tuner inputs, one GPS 10MHz input port and one 1PPS input port. The output modulated signals are to be received by TVs, STB and etc. This DVB-(T) modulator also simultaneously supports adaptive linear and nonlinear digital pre-distortion.

BISS function is also embedded to descramble programs from tuner input.

Product Detail

Product Tags

Principle Chart

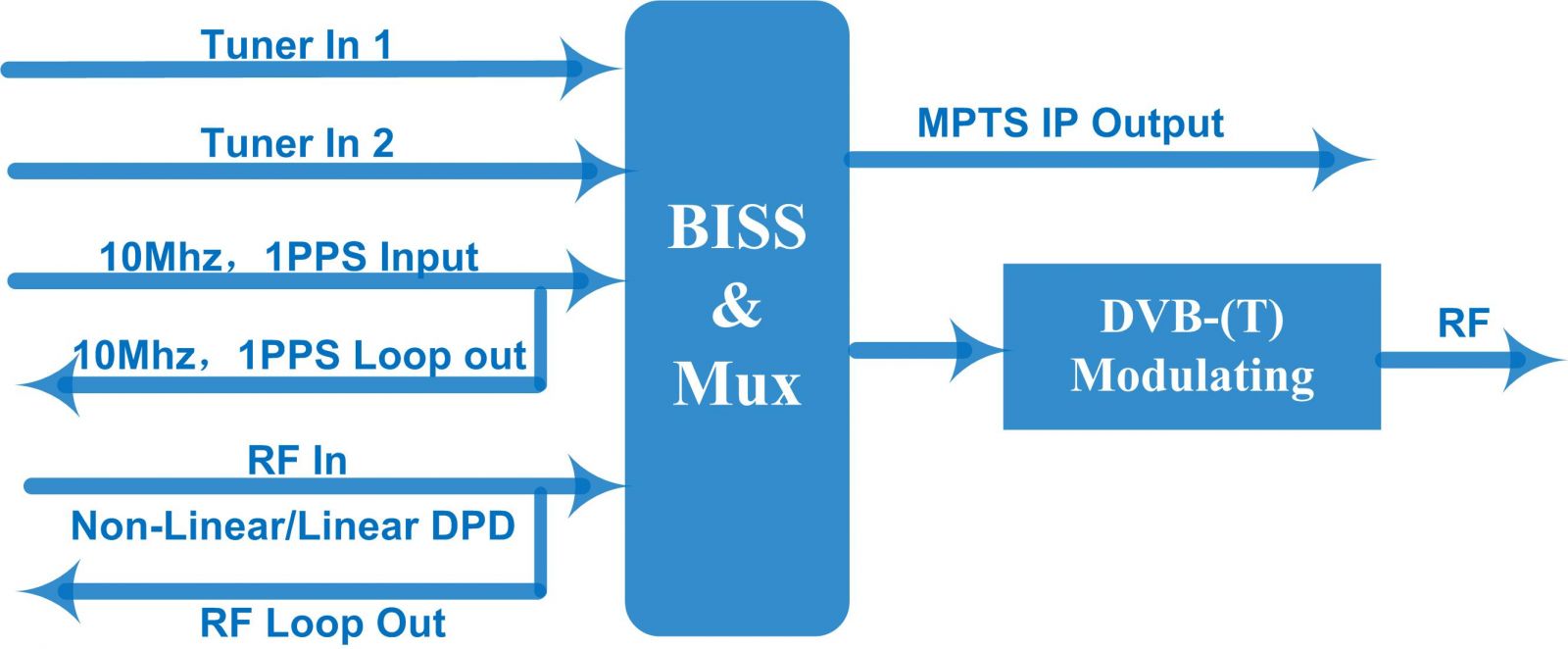

NDS2406B DVB-(T) modulator princple


* Support 2*S/S2 Tuner input

* 10MHz input/loop out, 1PPS input/loop out

* DVB-T/(T) T RF out in one device, multi-booting

* IP (1*MPTS over UDP) mirror RF output

* Support MISO and SISO

* High performance output: MER>43dB, shoulder level>56dB

* Supports non-linear and linear digital pre-distortion (DPD)

* Constant temperature crystal oscillator, as high as 0.1ppm stability

* Support LCD display and keyboard

* Support BISS descrambling

* Web-based Network management



Input 2*S/S2 Tuner input
10MHz reference clock input and loop out, BNC interface
1PPS input and loop out, BNC interface
1 RF input for DPD  -25dbm~+5dbm
Modulator DVB-T Standard EN300 744
FFT 2K, 8K
Bandwidth 5M, 6M, 7M, 8M
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Net Mode SFN/MFN
Hierarchical modulation Alpha=1, 2, 4
RF Out


Connector N Type, 50ΩImpedance
RF range 30~960Mhz, 1hz stepping
Output level ATT -25~+3 dBm, 0.1db stepping
MER > 43db
Shoulder Level >56dB
System LCD display, keyboard and web Network management
Supporting software upgrading through network
General Demission (W*L*H) 482mm×410mm×44mm
Weight 4.8kg
Temperature 0~45℃(operation),-20~80℃(storage)
Power supply AC 220V±10%,50/60Hz
Power Consumption 34W
