IP transcoder support Multi-Channel Transcoder

Short Description:

NDS3510 multi-channel transcoder supports to convert multiple video formats to H.264/H.265 based on software. With enhanced hardware, it presents superior performance with high reliability and stability. It is typically used to reduce video bitrate and more effectively utilize the tight network bandwidth resources.

Send email to us

Product Detail

Product Tags

Key Features

* Support multi-channel transcoding (Up to 76 SD/24 HD channels)

* IP input over UDP, RTMP, RTSP, HTTP; Video file input over TS, MP4, MKV, MOV, FLV

* IP SPTS output over UDP, RTMP

* Support convert one stream output by multiple protocols

* Video output in H.264/H.265 format

* Support resolution and bitrate downscale and upscale conversion

* Support null packet insert (for UDP out)

* Web-base GUI and LCD/Key button for easy management

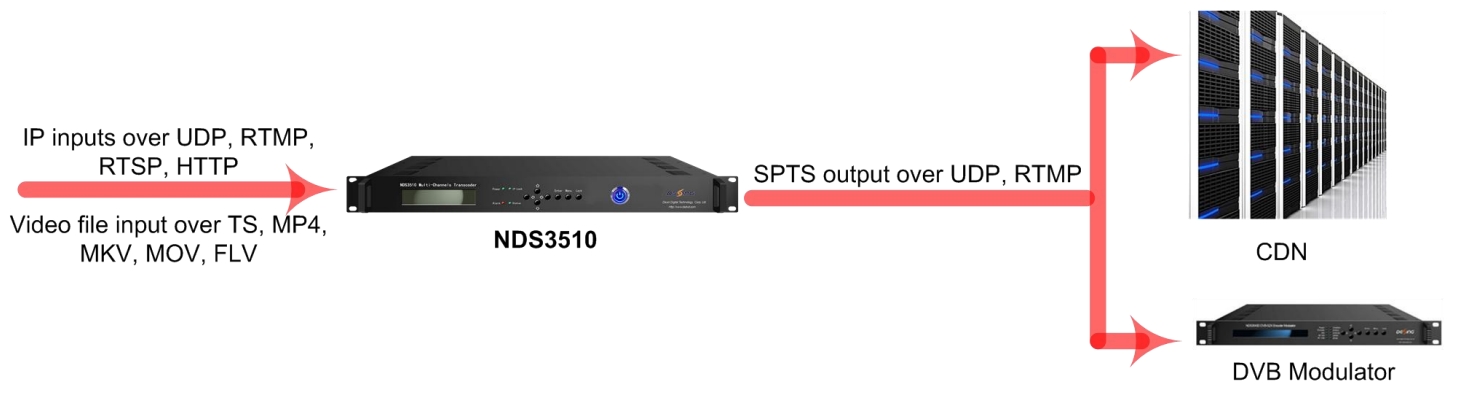

Application Example

Specifications

Input	IP Stream Input		2x GE port, RJ45, Protocol: UDP (MPTS/SPTS); RTMP, RTSP, HTTP (SPTS)
	Video file input		TS, MP4, MKV, MOV, FLV
Video	Input Format	MPEG-2/H.264/H.265
	GOP	0-60
	Output Format	H.264 (main/baseline/high profile); H.265
	Resolution	4K, 1080P 60/50, 1080i 60/50, 720P 60/50, 576i, 480i any-to-any conversion
	Bitrate out	0.5Mbps - 20 Mbps
Audio	Format	MPEG-2, AC3, AAC, AAC-HE, AAC-HE-V2
	Sampling rate	44.1KHz, 48KHz
	Bitrate out	MPEG-2: 32Kbps~384Kbps AC3, AAC, AAC-HE, AAC-HE-V2: 48Kbps~640Kbps
Video quality mode		high, balanced, normal
IP out	2x GE port, RJ45, SPTS Protocol: UDP, RTMP
System	Web-base GUI and LCD/Key button
	Language: Chinese/English
	Ethernet software upgrade
General	Dimension (WxLxH)			482mm×328mm×44mm
	Net weight			Approx 4kg
	Temperature			0~50℃(operation), -20~80℃(storage)
	Power Supply			AC 100V-240V 50/60Hz, 2A
	Consumption			≤150W

Test Data based on Balanced mode (for reference)

Input		Output			Channel NO.
Resolution	Video Format	Resolution	Video Format	Bit Rate	Channel NO.
4K-50	H.265/H.264	576i/720p/1080i/1080p/4K-25/4K-50	H.265/H.264	0.5 - 20Mbps	2-3
4K-25		576i/720p/1080i/1080p/4K-25			5-6
1080p-50/60		480i/576i/720p/1080i/1080p			10-12
1080i-60	H.265/H.264/MPEG2	480i/576i/720p/1080i			19-21
1080i-50		480i/576i/720p/1080i			22-24
720p-50/60		480i/576i			22-24
480i/576i	H.264/MPEG2	480i/576i			70-76
