The first all-in-one global access platform is an integrated fiber and copper access device. With this GPON-enabled device, users will be able to access high-speed internet and voice and video services such as IPTV and VoD. The MA5683T OLT will simplify network architecture, improve reliability, and significantly reduce total cost of ownership.
MA5683T 2*GICF, 2*SCUN,2* PRTE, WITHOUT PON PLATE
Modular design
Huawei’s MA5683T is a modular optical line aggregation terminal that combines compactness and functionality to connect up to 12,000 subscribers via GPON technology. High density is achieved with the option to install six service cards, each with 8 to 16 ports. The modular design allows for seamless expansion of chassis capacity by installing new cards or replacing the 8-port cards with 16-port cards.
MA5683T 2*GICF, 2*SCUN,2* PRTE, WITHOUT PON PLATE
Features of the Huawei MA5683T
The Huawei MA5683T is a modular optical line terminal (OLT) that can support up to 12,000 subscribers (GPON). The device has a GICF uplink card. The modular optical line terminal (OLT) has 13 slots:
6 service card slots;
2 GIU input card slots;
2 main control card slots;
2 power card slots;
1 slot for common interface board.
MA5683T 2*GICF, 2*SCUN,2* PRTE, WITHOUT PON PLATE
Game content

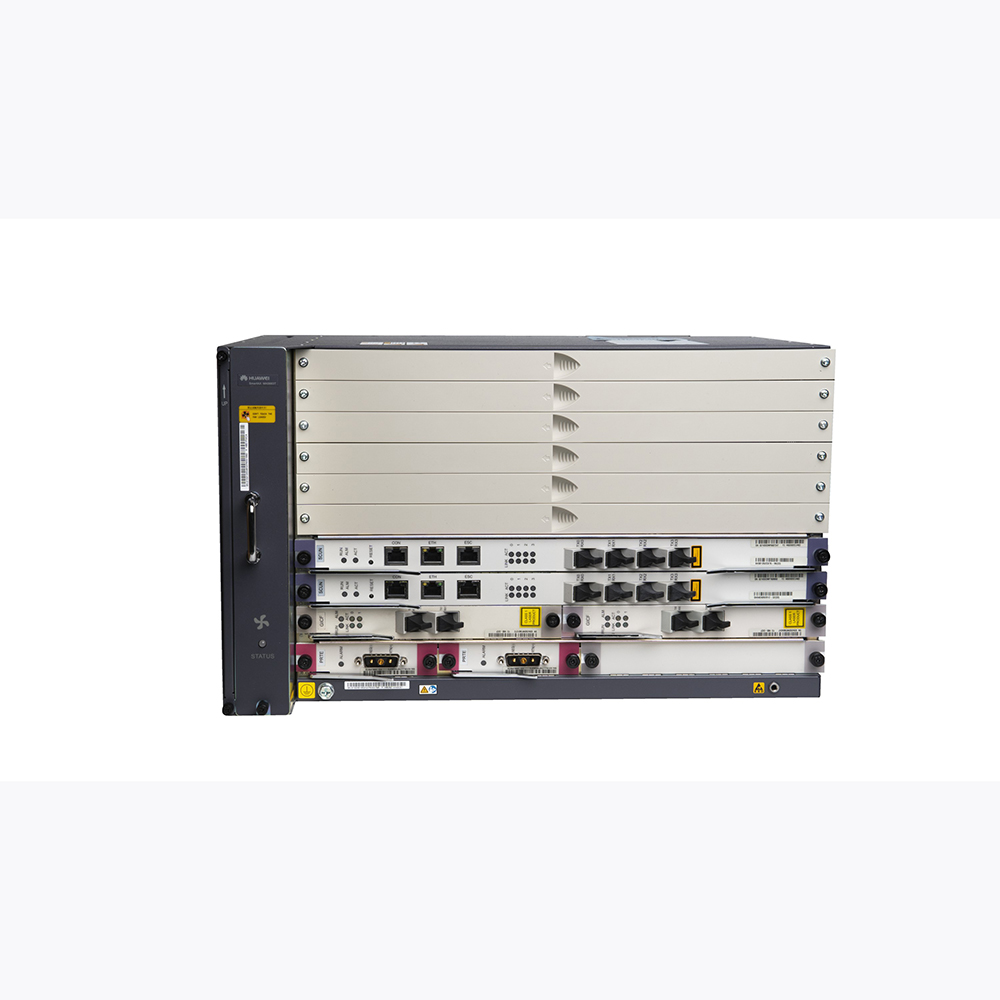

MA5683T housing two GICF cards two SCUN cards two PRTE cards fan module accessories
Specification
Specification
Switching capacity
1.5 Tb/s
L2 packet transmission rate
726 Mp/s in active/standby mode 1452 Mp/s in load sharing mode
Switching capacity of the control panel
480 Gbps in active/standby mode 960 Gb/s in load sharing mode
BER at full load
< 10 e-7
Availability (in standard configuration)
> 99.999%
MTBF
~ 45 years old
Management ports
Out of band Rj45 Console
Uplink Ports
4x SFP on the GICF board
Feeding method
DC
Permissible operating temperature
From -25 to 65°C
Permissible air humidity
5%-95% RH
Dimensions
482.6 x 283.2 x 263.9 mm
Weight (case only)
7 kg.
Switching capacity
480 Gbps in active/standby mode 960 Gbps in load sharing mode
Total capacity
10 Gbps in active/standby mode 20 Gbps in load sharing mode
MAC Address Table
32768
Maximum number of users
8192
Maximum number of multicast users
8192
Maximum number of multicast channels
4096
Maximum number of simultaneous multicast channels
2000
IPv4 Routing Table
5120
IPv6 Routing Table
5120
ARP board
8192
Number of ACL rules
1024
Maximum frame size
2052 bytes Using the jumbo frame function: 9216
VRF (L3 VPN)
Yeah
Energy consumption
Static: 30 W Maximum: 50 W
Dimensions
25.4 x 237 x 395.4 mm
Weight
0.5 kg
Plug-in module
Optical module (SFP) Electrical module (SFP)
Port speed
1.25 Gbit/s
Dimensions
25.40 mm x 237.00 x 197.20
Energy consumption
Static: 3.9 W Maximum: 3.9 W
Maximum frame size
2052 bytes When the jumbo frame feature is enabled, a maximum of 9216 bytes can be handled
Operating temperature range
From -25°C to 65°C
Relationship between optical/electrical modules and GE boards
GE Single Channel Bidirectional Optical Module GE Single Channel Bidirectional Optical Module GE CWDM Single Channel Bidirectional Optical Module GE Electrical Module
Connector
3v3
Strain
48 V DC
Static power consumption
1.5 W
Dimensions
25.4 x 237 x 105.1 mm
