NDS3107C ASI IP Multiplexer

Short Description:

NDS3107C multiplexer is an enhanced TS re-multiplexer for digital TV broadcasting head-end system. It can multiplex up to 8 ASI and 512 IP input and output TS through 2 groups of separate ASI output port and two GE port for two separate IP outputs. The multiplexer has all the functions of normal TS multiplexer, including programs multiplexing, PID re-mapping etc. Also the multiplexer can insert EPG (Electronic Program Guide), and data casting information into each output stream. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.

Send email to us

Product Detail

Product Tags

Features

* Fully complying with ISO13818 and EN300 468 standard

* Support 8 ASI input for re-multiplexing

* Support 512 IP input through DATA 1 and DATA 2 over UDP protocol

* Support accurate PCR adjusting/ PID re-mapping/PSI/SI rebuilding and editing

* Two groups (each group has 2 channels)separate ASI outputs

* IP (2 MPTS) over UDP, RTP/RTSP output as mirror of ASI output (RJ45), GE Port, DATA 1 and DATA 2

* Huge buffer memory for saving the overflowing code stream

* Support to multiplex one program to all outputs

* LCD/keyboard and Web-based NMS management

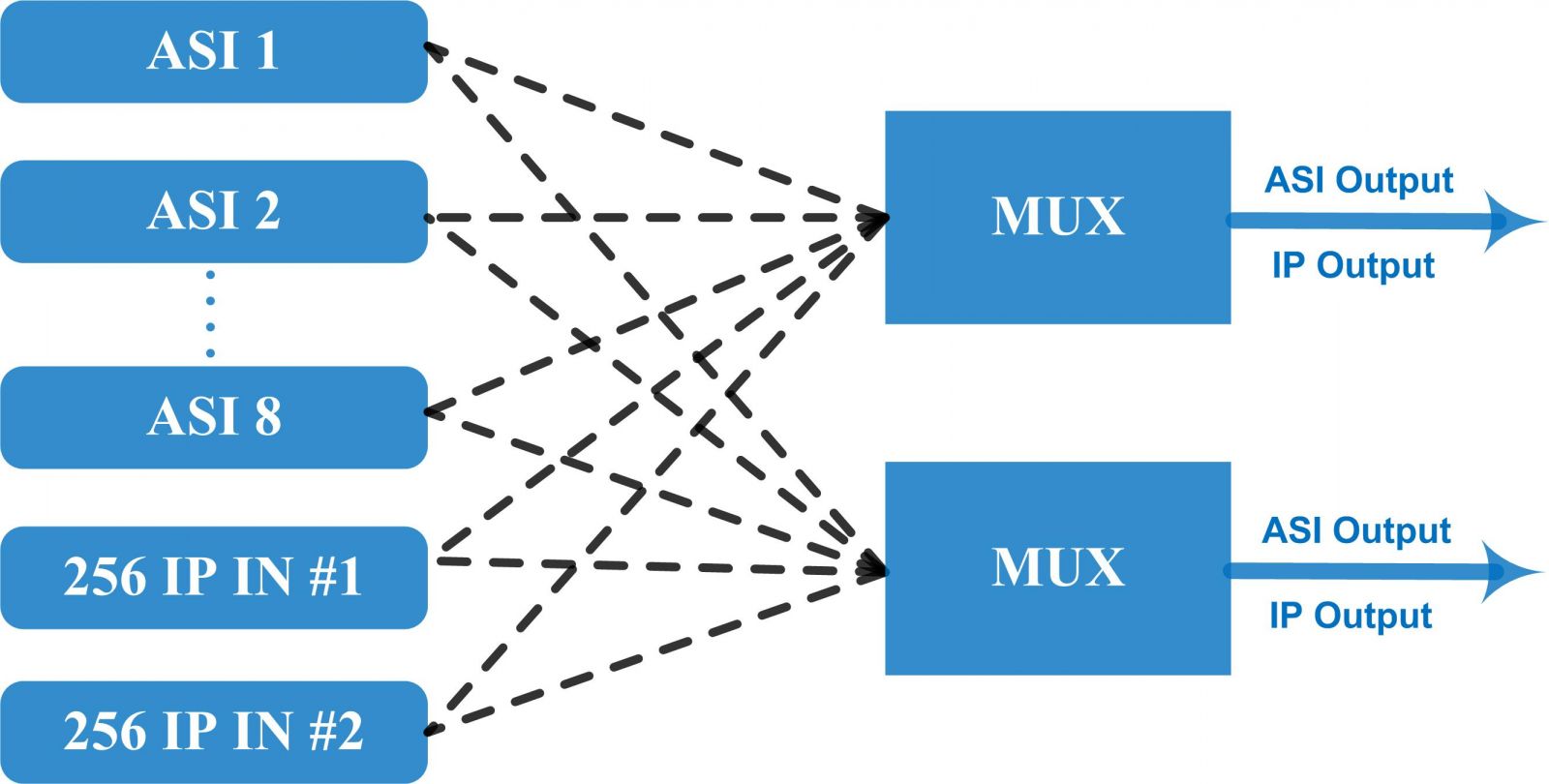

Principle Chart

Specifications

Input	8 ASI input+512 IP input DATA 1 and DATA 2 over UDP protocol
Re-multiplex	PID re-mapping
	PCR accurate adjusting
	PSI/SI (PAT, PMT) tables auto generation and edition
Output port	ASI	2 groups separate outputs (each group has 2 channels)
Output port	IP	MPTS over UDP, RTP/RTSP output (RJ45), 1000Mbps Ethernet, DATA 1 and DATA 2
PID	Output range	0×0000—0x1FFF
	PID transparent	Any PID transparent and mapping achievable
	Amount of output PID	180
NMS port	Ethernet port	10/100M/1000M self adaption
General	Dimensions	482mm×300mm×44mm (WxLxH)
	Weight	3.5kg
	Temperature	0~45℃(operation), -20~80℃(storage)
	Power supply	AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz
